The ZEON SEALED Tilt elevates sophistication and resilience with its sleek 15×15mm mini luminaire design. Delivering a radiant, uniform RGBW output that follows the black body locus (BBL), this advanced solution is engineered for premium architectural detailing—enhanced by innovative top flex bending for seamless flexibility in both vertical and horizontal directions. With CRI 90+ and a robust IP67 rating, ZEON SEALED Tilt excels in demanding indoor and outdoor environments where visual quality and durability must go hand in hand.

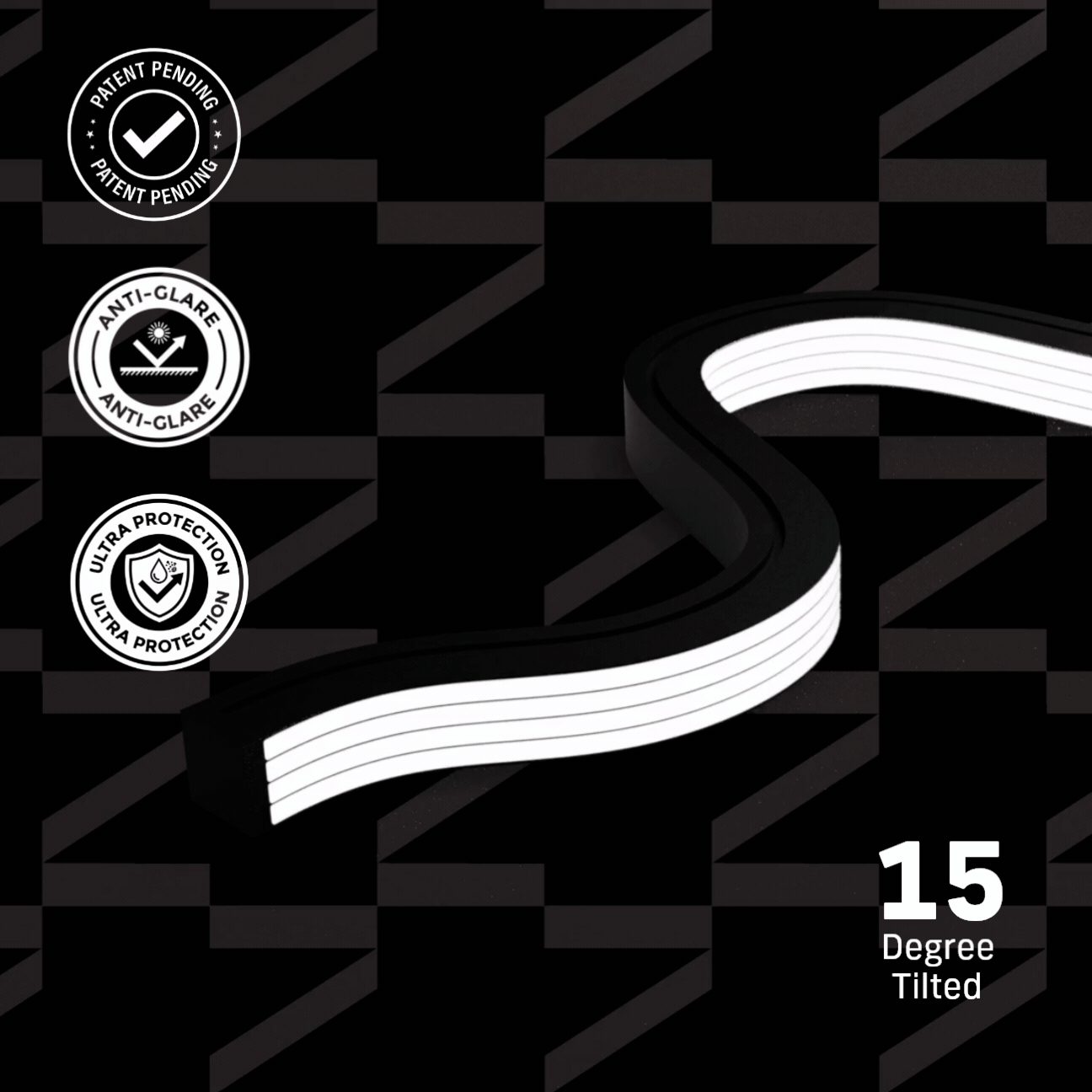

At the core of its distinction is a next-generation louver architecture: unlike conventional fin structures, the central louvers are precisely tilted at 15°, creating a stronger shielding plane that significantly improves glare cut-off from the viewing side—especially on the opposite face where comfort and concealment are most critical. In addition, the louver gaps are fully filled and sealed, preventing dust and water from accumulating between fins, preserving pristine aesthetics while ensuring long-lasting, low-maintenance performance.
* For Delivered lumen, refer to the luminaire data sheet
Power: 16W/m
Color Temperature: RGBW
Luminous flux@RED 4W: 27lm
Luminous flux@GREEN 4W: 71lm
Luminous flux@BLUE 4W: 16lm
Luminous flux@3000K: 66lm
Bending Direction: Top Flex
